Results in the network diagram

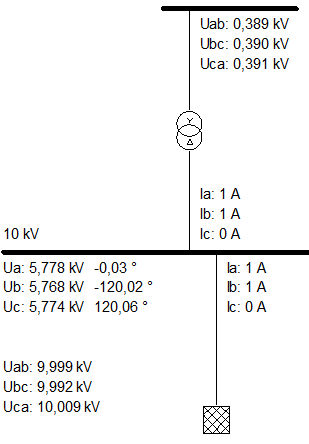

The results will be displayed in the network diagram according to the view settings. Voltages and currents of the three phases are displayed individually by their absolute values.
Results in the detail forms
By right-clicking an object, detailed results for the object can be viewed.
For nodes, the phase voltages will be displayed in absolute value and phase angle. By clicking the Details button, the voltages will be displayed in their complex notation. Also the voltage unbalance factor au (U2/U1) will be displayed in percent.

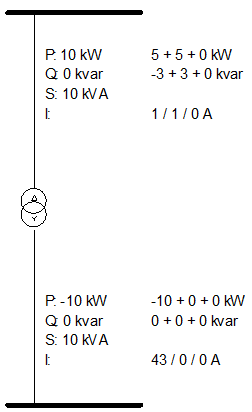

For branches, their powers and currents will be displayed in absolute value. Powers are displayed as three phase power, followed by the power per phase: <phase a> + <phase b> + <phase c>. Currents are displayed per phase. By clicking the Details button, the currents will be displayed in their complex notation and the current unbalance factor ai (I2/I1) will be displayed in percent for both sides.
For elements, their powers and currents will be displayed in absolute value. Powers are displayed as three phase power, followed by the power per phase: <phase a> + <phase b> + <phase c>. Currents are displayed per phase. By clicking the Details button, the currents will be displayed in their complex notation and the current unbalance factor ai (I2/I1) will be displayed in percent.
Using Calculate | Results | Export, the results can be exported to an Excel-file.
