All objects can be augmented with a user-defined note. This note will be presented in a yellow frame, located close to the concerning object.
The frame can be moved and its size does not depend on the zoom level. This way to keep it always visible.
For branches the text @1: and @2: can be added, indicating whether the following characters should be placed at the beginning or the end of the branch.
The notes on a network can be suppressed; see View.

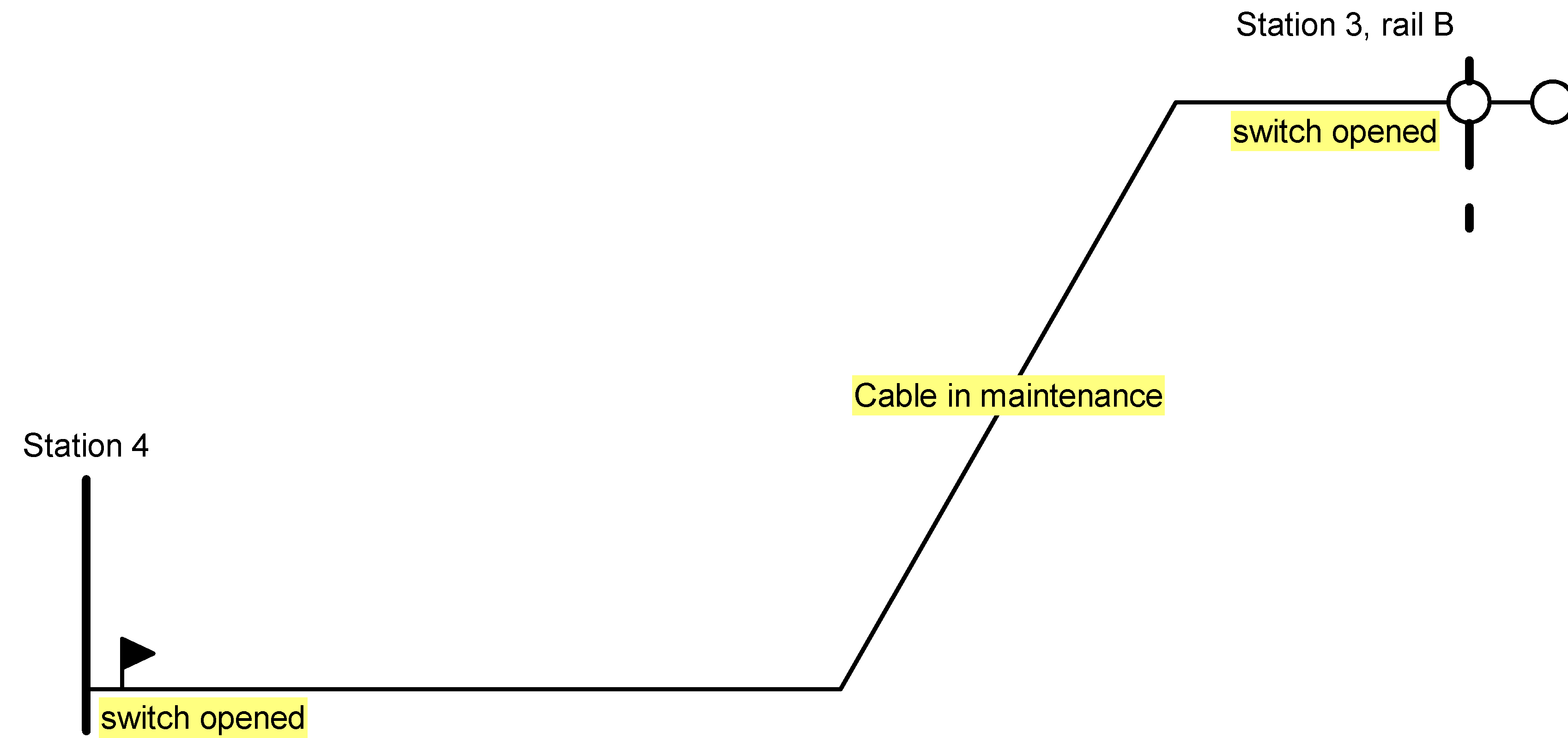

Example of a note at a cable:
Cable in maintenance
@1:switch opened
@2:switch opened
Notes can be selected from a list using: Start | Select | Note.
