Purpose:

Write macro resulting text next to an object in the one-line network diagram



General notation:

View ( Object, value1 [ , value2 [ , value3 ... ] ]  )



Example:

Write P1, Q1 and I1 on one line next to each branch:

loadflow ( 0 , , true , false )

for(branch,a)

   view(a,'P=',a.P1,'MW, Q=',a.Q1,'MW, I=',a.I1,'A')

end

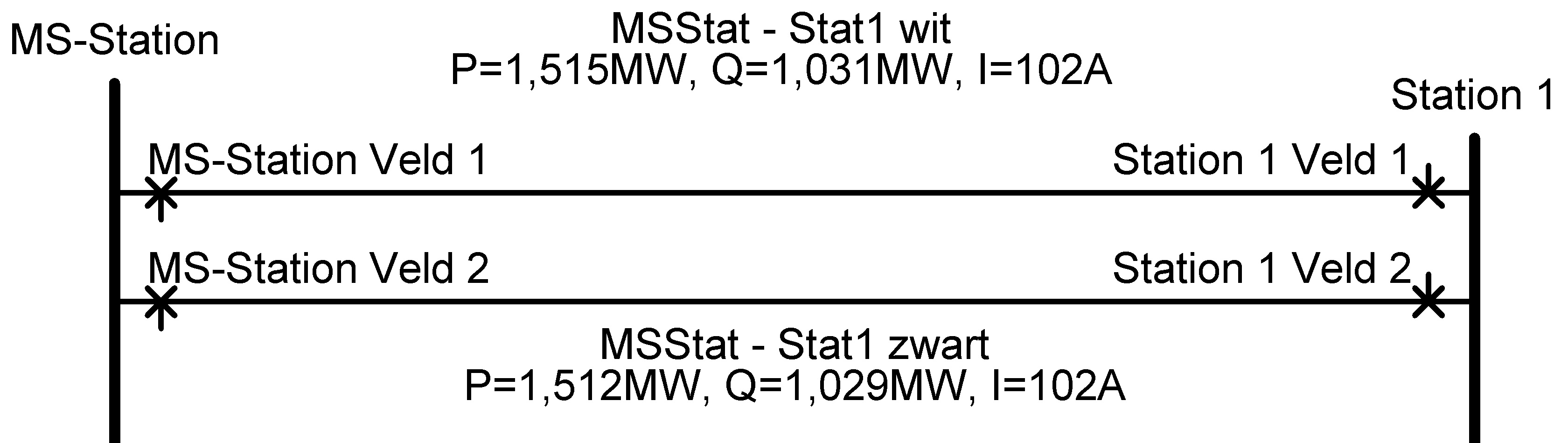

The example prints text variable b next to each branch. In the next example for two branches of the demo-network:







See also:

•Viewcolor



Back to reporting commands.
